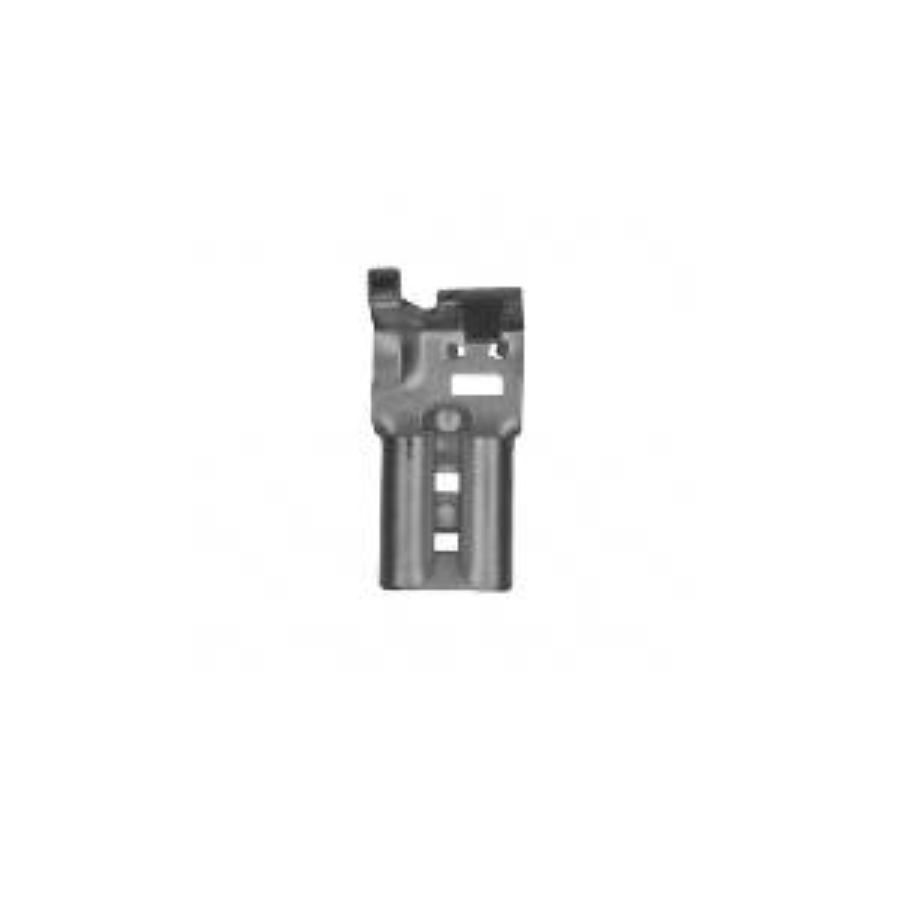

62591-1
Manufacturer:
TE Connectivity
Mfr.Part #:
62591-1
Datasheet:
Description:
Terminals Free Hanging 16 AWG Female
| Parameter | Value |
|---|---|
| Length | 13.5 mm |
| Termination | Receptacle |
| Material | Brass |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Yellow |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 4.7498 mm |
| Wire/Cable Diameter | 4.32 mm |
| Terminal Material | Brass |
| Wire/Cable Gauge | 16 AWG |
| Insulation | Non-Insulated |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 10 AWG |
| Wire Gauge (Min) | 12 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 4.318 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Mating Tab Width | 4.75 mm |
| Tab Length | 4.75 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 4.75 mm x 0.81 mm |
Stock: 29481
Distributors
pcbx
pcbxUnit Price$0.11500
Ext.Price$0.11500
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11500 | $0.11500 |
| 10 | $0.09639 | $0.96390 |
| 50 | $0.08578 | $4.28900 |
| 100 | $0.08165 | $8.16500 |
| 500 | $0.07288 | $36.44000 |
| 1000 | $0.06940 | $69.40000 |
| 3000 | $0.06531 | $195.93000 |
| 5000 | $0.06146 | $307.30000 |
| 10000 | $0.05783 | $578.30000 |
